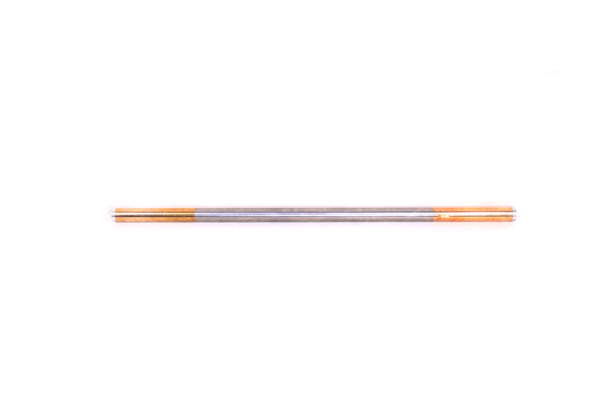

METC directional probe is designed to enable high accuracy measurement of inclination, azimuth and tool face in borehole logging and drilling applications.
Our probe employs high performance magnetometer and accelerometer sensors and a temperature sensor to maintain high accuracy over the temperature range of the system, the sensors are highly repeatable.
Directional Probe Specifications
Inclination Accuracy: ±0.1°; (0°-180° Range)
Azimuth Accuracy: ±1.0°; (0°-360° Range)
Tool Face Accuracy: ±1.0°
Tool Outer Diameter: Φ48mm (and Φ38mm option for slim hole size well)
Max. Operating Temperature: 150°C (175°C option)
Max. Pressure: 138MPa (20,000PSI) ; 172MPa (25000PSI) option
Allowable Max. Shock: 1000G, 0.5mSec, half-sine
Allowable Max. Vibration: 20G RMS, 15-500Hz Random
