Double Acting Hydraulic / Mechanical Drilling Jar

Our Double Acting Hydraulic / Mechanical Drilling Jar is bi-directional drilling jar incorporating hydraulic delay without a latch mechanism.

This jar will allow the operator to apply variable impact in both the up and down directions.

The jar is intended for use in highly deviated or high friction wells, where conditions may prevent applying sufficient force to release a mechanical latch.

Features and Benefits

The jar is hydraulically controlled and jars in both directions, with impact force controlled by the operator.

Impact force is controlled by a metering device that ensures consistent delay times over the full range of operating temperatures.

The jar operates via a simple up and down motion and is unaffected by right- or left-hand torque.

Standard seals are suitable for use up to 250°F (120°C).Optional high temperature seal kits are available for service to 400ºF (200ºC).

External sealing surfaces are tungsten carbide-coated to enhance wear and corrosion resistance.

Operation

Jarring Up

With the jar in the neutral position, apply the desired overpull in excess of the free string weight, starting the hydraulic delay sequence.

At the end of the hydraulic delay, the jar will release causing an upward impact force.If necessary, lower the drill string sufficiently to close the jar to the neutral position, ready to jar up again.

Jarring Down

With the jar in the neutral position, lower the drill string to apply the desired down force, starting the hydraulic delay sequence.

At the end of the hydraulic delay, the jar will release causing a downward impact force.If necessary, raise the drill string sufficiently to open the jar to the neutral position, ready to jar down again.

Handling

To prevent unintentional tripping during handling, the jar is fitted with a safety clamp to keep the jar in the fully extended position.

The safety clamp must remain installed until the jar is ready to run into the hole.

When coming out of the hole, install the safety clamp while the jar is still under tension and fully extended.

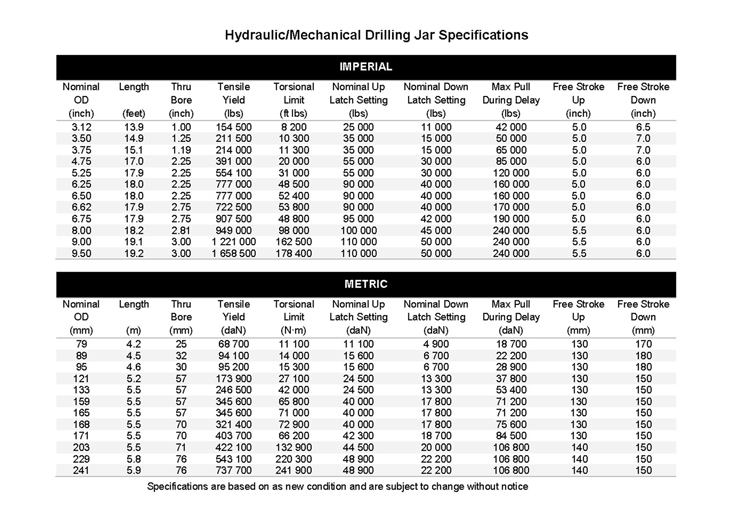

Double Acting Hydraulic/Mechanical Drilling Jar Specifications
