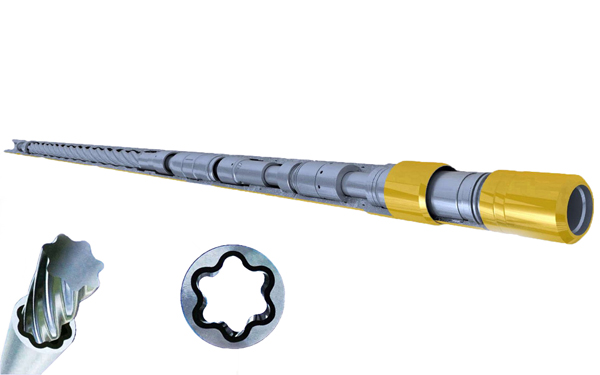

Downhole Motor
Adjustable Bent Housing
Adjusting Crown Lift feature eliminates problems associated with stuck or seized adjusting crown.
Large bore to accommodate Maxi-Torque driveline.
Easy to set. Internal stop prevents rotation past 0 or 3 setting position.
Higher make up torques.
Suitable for use with even wall technology, hard rubber, and other high torque power sections.
Adjustable from 0 to 3 degrees in twelve increments.
Other models adjustable from 0 to 2 degrees or 0 to 4 degrees are available upon request.
Maxi-Torque Driveline
Large contact areas of the couplings and connecting rod promotes a very low wear rate of the joint components.
Designed for use with even wall tech torque power sections.

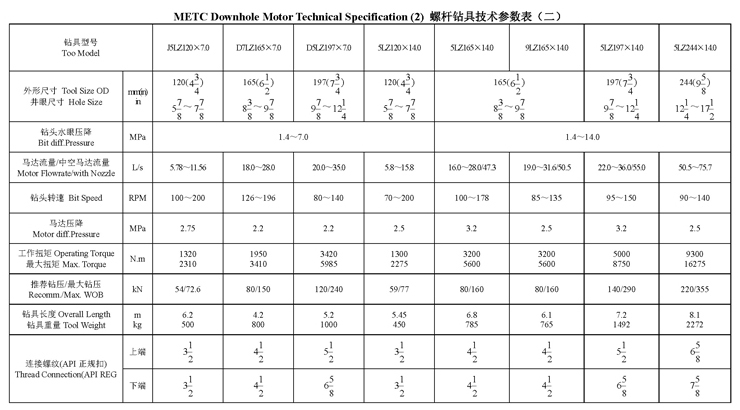

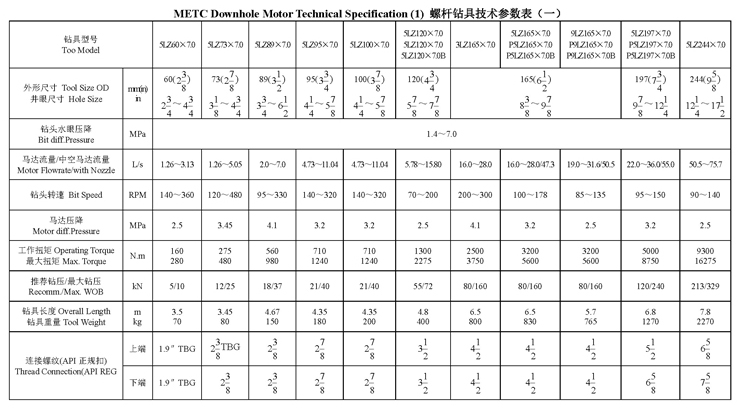

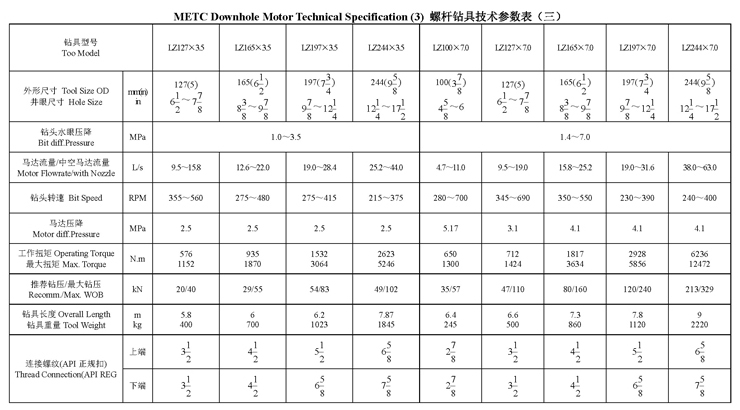

Technical Specifications
